INNER JOIN: definition and application

Multiple database tables in the relational database model can be queried using SQL-JOINs. With the exception of the CROSS-JOIN, all JOIN types are a combination of Cartesian product and selection.

The database management system (DBMS) initially forms the cross product of two database tables. It then filters the result according to a selection condition defined by the user using an SQL statement. The INNER JOIN differs from all other JOIN types by its minimal result set. Only the data records of a cross product that fulfills the selection conditions are output as the result of an INNER JOIN. The result is a result table (view) without zero values.

Contents

INNER JOINs in practice
Subspecies of an INNER JOIN
1. THETA JOINs, EQUI JOINs, and NON EQUI JOINs
2. NATURAL JOINs

$1 Domain Names

Why wait? Grab your favorite domain name today!

Matching email

SSL certificate

24/7/365 support

INNER JOINs in practice

We are illustrating the INNER JOIN using an example here, and are assuming two tables. The table “employees” contains the employees of a company including the employee ID (e_id) and the corresponding department (d_id).

Table: employees

e_id	Surname	First name	d_id
1	Schmidt	Jack	3
2	Muller	Blain	1
3	McClain	Walker	1
4	Cohn	Greg	2
5	Connolly	Kevin	NULL

The table shows two special features: the employees Muller and McClain work in the same department. The employee Connolly has not yet been assigned to a department.

The table “departments” lists all of the company’s departments including ID and location.

Table: departments

d_id	Designation	Location
1	Sales	Denver
2	IT	Syracurse
3	Personal	Portland
4	Research	Louisville

Both tables are linked by a foreign key relationship. The department ID, which is the primary key in the “departments” table, has been integrated into the “employees” table as a foreign key.

The link allows us to use an INNER JOIN over both tables. This is necessary, for example, to determine which employee works at which location.

When querying relational databases, a match of primary and foreign keys is usually defined as a selection condition. The condition is considered fulfilled if the selected foreign key of one table matches the primary key of the other table (=). This means that only those data records that contain common values are output.

An INNER JOIN like this is noted in relational algebra as follows:

employee⋈_{d_id=d_id}departments

However, relational database systems do not accept commands in relational algebra syntax, but in the form of SQL statements.

SELECT * FROM employee INNER JOIN departments ON employee.d_id = departments.d_id;

The SELECT command instructs the DBMS to query data from the database. Alternatively, SQL offers the option of entering (INSERT INTO), changing (UPDATE) or deleting (DELETE FROM) data. The SELECT command is followed by a specification of what data needs to be retrieved. Since we want to retrieve the complete data set, we are choosing an appropriate placeholder: the asterisk (*).

The SELECT command always requires the keyword FROM and the specification from which table or table group (JOIN) the data is to be retrieved. In our case, the data source is an INNER JOIN via the “departments” and “employees” tables. We also specify a condition for the link with the keyword ON. We just want to link the data records and output them as a result table for which the “d_id” of the “employees” table corresponds to the “d_id” of the “departments” table.

Tip

Since the INNER JOIN is the most important SQL-JOIN, you can omit the keyword “INNER” if required.

An INNER JOIN through the two output tables with the condition “employee.d_id=departments.d_id” returns the following result table:

Table: SQL INNER JOIN between “employee” and “departments”

e_id	Surname	First name	employee.d_id	department.d_id	Designation	Location
1	Schmidt	Jack	3	3	Personal	Portland
2	Muller	Blain	1	1	Sales	Denver
3	McClain	Walker	1	1	Sales	Denver
4	Cohn	Greg	2	2	IT	Syracuse

If you compare the result table with the two output tables, you notice that one data record is missing from each table: the data records whose value in column “d_id” has no correspondence in the other table.

(5, Connolly, Kevin, NULL)

and

(4, Research, Louisville)

The employee Connolly has not yet been assigned a department. The research department has not yet been assigned any staff. Both data records are hidden in an INNER JOIN, which serves to compare employees with their respective departments.

If we want to detect these irregularities and make them visible in the query, we should choose an OUTER JOIN instead of an INNER JOIN.

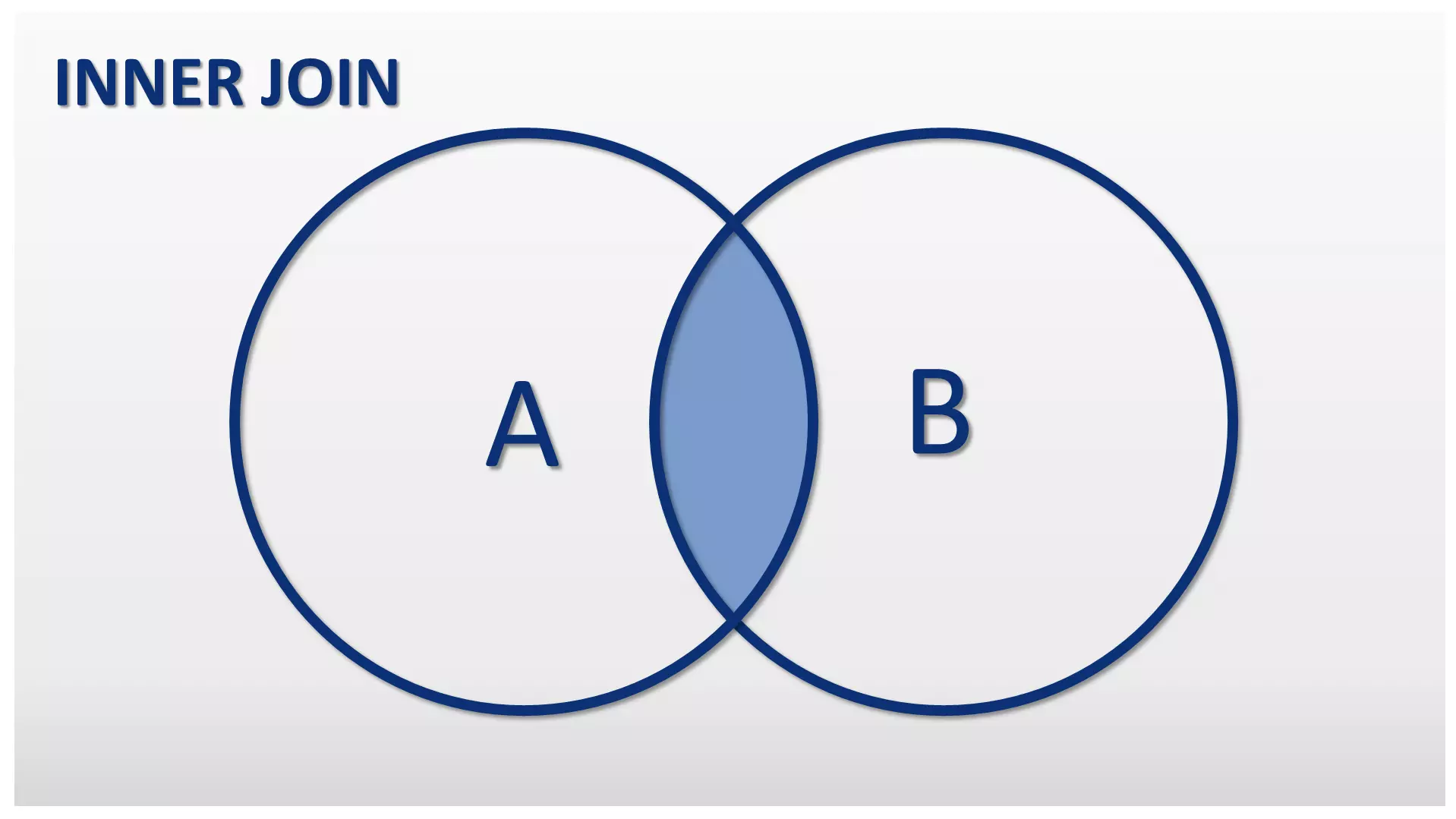

Schematic representation of an INNER JOIN as a quantity diagram — An INNER JOIN as a set diagram: The result set of an INNER JOIN through tables A and B corresponds to the intersection of A and B.

Subspecies of an INNER JOIN

INNER JOINS can be categorized as THETA JOINs, EQUI JOINs, NON EQUI JOINs, and NATURAL JOINs.

THETA JOINs, EQUI JOINs, and NON EQUI JOINs

The INNER JOIN in SQL terminology corresponds to the THETA JOIN of relational algebra. The THETA JOIN differs from EQUI JOINs and NON EQUI JOINs in that it provides users with an unlimited set of comparison operators. EQUI JOINs, on the other hand, restrict the selection condition for queries to the equality of column values. For NON EQUI JOINs, all relational operators except the equals sign are allowed.

JOIN type	Allowed comparison operators
THETA JOIN	= (equal to) < (lesser than) > (greater than)≤ (smaller than or equal to)≥ (larger than or equal to)<> (unequal)!= (unequal)
EQUI JOIN	= (equal to)
NON EQUI JOIN	< (lesser than) > (greater than)≤ (lesser than or equal to)≥ (greater than or equal to)<> (unequal)!= (unequal)

NATURAL JOINs

If two tables (like in the previous examples) are connected using columns with the same names, INNER JOINs are usually converted as NATURAL JOINs.

NATURAL JOINs are subspecies of EQUI JOINs. Like the EQUI JOIN, the NATURAL JOIN also requires the equality of two column values as selection condition.

A NATURAL INNER JOIN on the tables “employees” and “departments” could be implemented as follows, for example:

SELECT * FROM employee INNER JOIN departments USING(d_id);

The SQL statement instructs the DBMS to link the listed tables. The selection condition is created using the keyword USING, which specifies which columns are to be checked for equality. The prerequisite is that a column “d_id” exists in both tables. Data records from both tables are only included in the result set if the DBMS finds identical values in the columns marked “d_id.”

The result table of the NATURAL JOIN differs from the classic INNER JOIN in that columns with the same names are not listed twice, but are merged into a common column.

Table: NATURAL JOIN between “employee” and “departments”

e_id	Surname	First name	d_id	Designation	Location
1	Schmidt	Jack	3	Personal	Portland
2	Muller	Blain	1	Sales	Denver
3	McClain	Walker	1	Sales	Denver
4	Cohn	Greg	2	IT	Syracuse

Instead of the “department IDs” of both tables as “employees.d_id” and “departments.d_id,” only one column “d_id” is played.

NATURAL JOINs can be abbreviated without the USING clause. Instead, the NATURAL JOIN operator is used. The short notation of the above operation corresponds to the following SQL statement.

SELECT * FROM employee NATURAL JOIN departments;

The NATURAL JOIN operator automatically connects tables using columns with the same names. The selection condition does not have to be defined explicitly.

Note

A NATURAL JOIN is automatically converted to an INNER JOIN. However, if you want to convert an OUTER JOIN as a NATURAL JOIN, additional keywords are required (for example, NATURAL LEFT OUTER JOIN).
