How to perform a Gigabyte BIOS update

Updating the BIOS on a Gigabyte moth­er­board is important for ensuring the stability, com­pat­i­bil­i­ty and per­for­mance of your computer. BIOS updates fix hardware problems, enable support for new com­po­nents and provide ad­di­tion­al features.

Step 1: Prepare for the update

Before you start the Gigabyte BIOS update, you’ll need to make some important prepa­ra­tions to avoid potential risks like system failures and data loss. First, you should find out which BIOS version is currently installed on your moth­er­board. That’s how you can tell whether you need an update.

To do that, turn on your computer and press [Del] re­peat­ed­ly during startup to open the BIOS. Look for the BIOS version currently installed and make note of it. It is often shown at the top of the main page. You can also find out the BIOS version using the operating system – press the keys [Windows] + [R] and enter msinfo32. You’ll find the BIOS version currently installed under “BIOS Version/Date”.

Step 2: Download the most recent BIOS version from the Gigabyte website

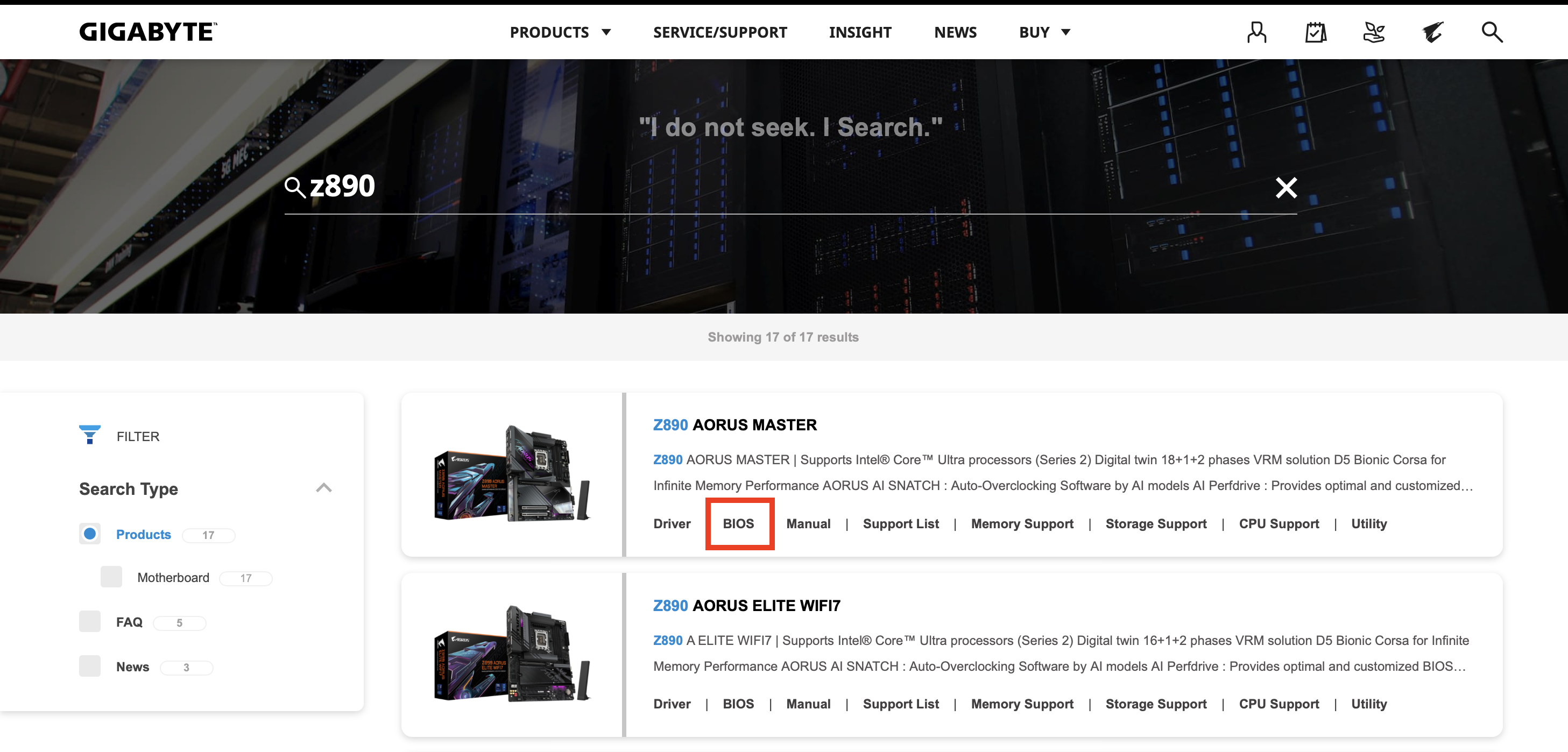

To obtain the current BIOS version, you’ll need to visit the Gigabyte website. Enter the model of your moth­er­board in the search bar. You can find the model name on the packaging, in the handbook or on the moth­er­board itself. Af­ter­wards, select your model from the search results and click on BIOS in the menu.

Close

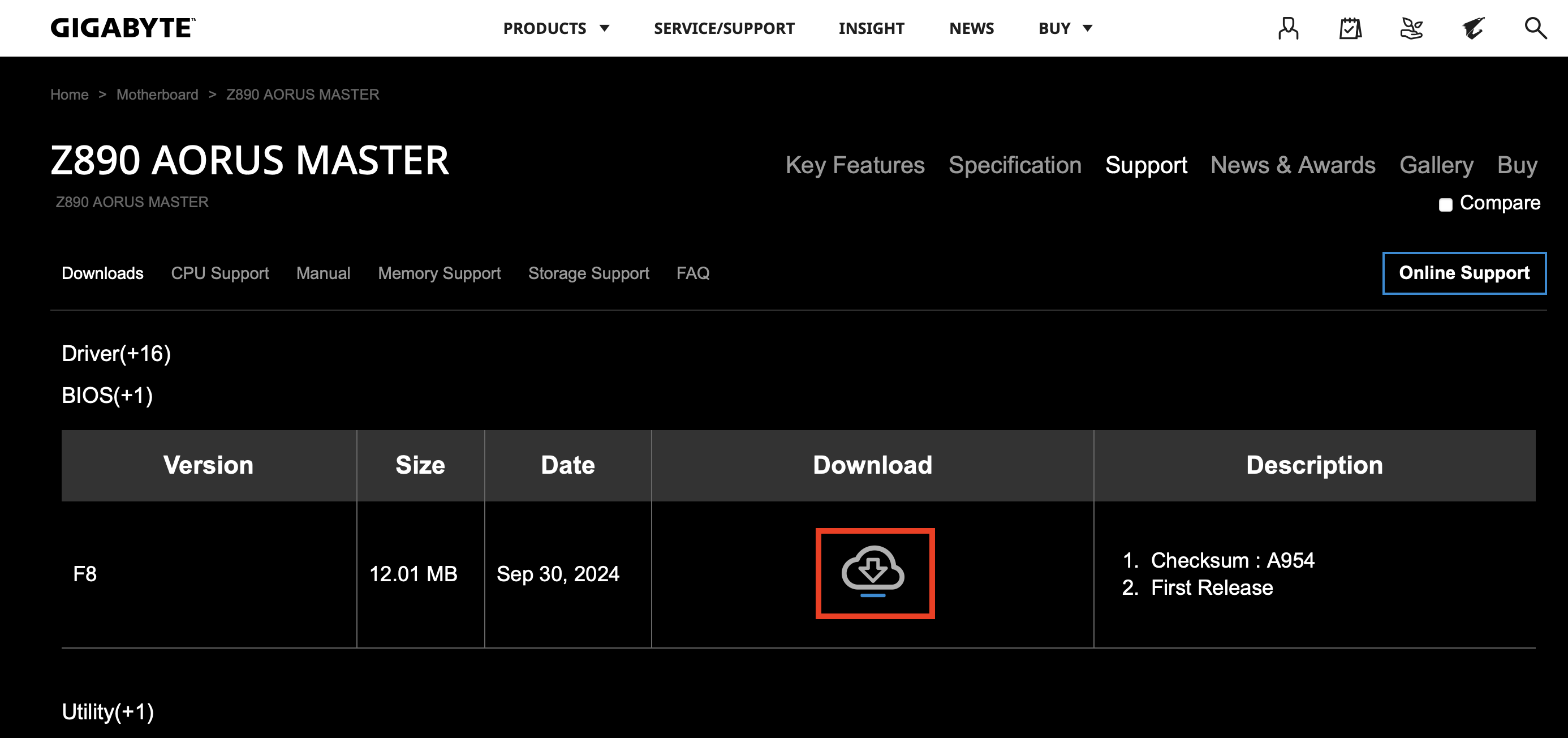

Then download the most recent BIOS version. Make sure that it’s com­pat­i­ble with your moth­er­board.

Close

Step 3: Prepare your USB stick

To install the Gigabyte BIOS update, you’ll need a USB stick that’s empty, suf­fi­cient­ly large and formatted for the FAT32 file system.

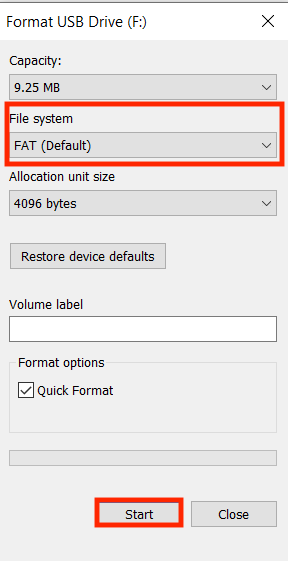

To format the USB drive, first connect it to your computer. Open it in Windows Explorer and right click on the stick. Then choose Format. Ensure that FAT is chosen as the file system and then click on Start:

Close

After for­mat­ting, unzip the BIOS file you down­loaded with a program of your choice and copy its contents onto the USB stick.

Step 4: Prepare your computer

It’s important that your computer doesn’t crash or turn off during the Gigabyte BIOS update, as this could damage the moth­er­board. Make sure that your computer is plugged into a reliable power source, close all programs and save any open documents. You should also remove any un­nec­es­sary USB devices like external hard drives or printers to ensure the update goes as smoothly as possible.

Step 5: Open Q-Flash in BIOS

Gigabyte moth­er­boards have an in­te­grat­ed tool called Q-Flash that was developed specially for BIOS updates. To use it, restart your computer and press [Del] re­peat­ed­ly during startup to open the BIOS. In the BIOS menu, look for Q-Flash. It’s often at the bottom of the start page or in a special submenu. You can also press [F8] in BIOS to access Q-Flash. Then click on Update BIOS.

Step 6: Select the BIOS file

Now you need to select the BIOS file from your USB drive to start the update. First stick the USB drive into the USB port of your computer, and then select the option Update BIOS from Drive in Q-Flash. Q-Flash will then au­to­mat­i­cal­ly search for the BIOS file on your USB stick. Make sure the version is correct before pro­ceed­ing with the update.

Step 7: Start the Gigabyte BIOS update

Once you’ve selected the correct file, you can start the update. To do so, confirm that you want to update BIOS. Q-Flash will start the process. The progress of the update will be shown on the screen. Do not under any cir­cum­stances turn off or unplug the computer during the update. That could cause ir­repara­ble damage to the moth­er­board. After the update your computer will au­to­mat­i­cal­ly restart.

Step 8: Confirm update

To ensure that the Gigabyte BIOS update was suc­cess­ful, you can check the BIOS version again like we did in Step 1 or display it using msinfo32.
