How do you set up an RTMP server?

An RTMP server is a server that transmits audio and video data over the internet in real time, primarily for live streams. It receives the stream and forwards it to streaming platforms or viewers. Compared with online providers, running your own streaming server offers a number of ad­van­tages.

What is an RTMP server?

Streaming services are now every­where. Platforms like Twitch have become part of daily life for many gamers, and streams from other areas such as music, art, and cooking are also gaining pop­u­lar­i­ty.

With an RTMP server, however, you don’t have to rely on platforms like Twitch. Instead, you can run your own streaming server. To do this, you use the Real Time Messaging Protocol (RTMP). This network protocol, orig­i­nal­ly developed by Adobe Inc., sends audio or video content to a streaming server, which then makes the media available in real time.

Although Adobe ended support for Flash Player at the end of 2020, the RTMP protocol remains widely used. Even though streams are no longer displayed directly in a browser, RTMP streams can still be received using video ap­pli­ca­tions such as the VLC player or similar al­ter­na­tives.

In modern streaming workflows, RTMP is typically not used to deliver video directly to viewers. Instead, it functions as an ingest protocol, trans­mit­ting the stream from an encoder (for example, OBS) to the server. From there, the video is delivered to end devices using protocols like HLS (HTTP Live Streaming), DASH, or WebRTC, which are supported by most current browsers and devices.

What are the ad­van­tages of an RTMP server?

Running your own streaming server lets you stream the content you want without platform re­stric­tions. Ads that are sometimes inserted into streams on common platforms also won’t appear when you use an RTMP server that you control. It’s therefore no surprise that private livestream servers are widely used in the gaming community.

However, setting up your own streaming server can also be worth­while in other areas. You can deliver livestreams or video content presented on your website directly from your own server without relying on external third-party platforms such as YouTube. This can be an at­trac­tive option, for example, for webinars.

What are the re­quire­ments for setting up an RTMP server?

Before you can start setting up your own streaming server, you’ll need a few things. First, you need to choose a suitable server solution. Since you typically want to provide a smooth, un­in­ter­rupt­ed stream for many viewers, you shouldn’t rely on the per­for­mance of your PC or laptop, which you may also be using for gaming at the same time. The bandwidth of your internet con­nec­tion, in par­tic­u­lar, plays a major role in this decision.

Processor per­for­mance (CPU)

In principle, an RTMP server is not par­tic­u­lar­ly com­pu­ta­tion­al­ly intensive. A single CPU core may be suf­fi­cient for small projects without transcod­ing. However, re­quire­ments can increase sig­nif­i­cant­ly, es­pe­cial­ly if the server is also used for transcod­ing.

Random access memory (RAM)

From a RAM stand­point, an RTMP server generally has modest re­quire­ments. For smaller projects, 4 GB of memory can be suf­fi­cient. If you’re planning a larger setup, however, choosing 8 GB is the safer option.

Storage space

The in­stal­la­tion files for the required NGINX software are rel­a­tive­ly small. You only need to consider storage capacity if you plan to save streams on the server. In that case, the stream’s duration and quality become important factors.

Bandwidth

You should pay par­tic­u­lar­ly close attention to bandwidth. Keep in mind the size of the stream – this mainly depends on image and sound quality. This size is mul­ti­plied not only by the number of viewers, but also by the number of streams. If you want to dis­trib­ute multiple streams via one RTMP server, the bandwidth must be cor­re­spond­ing­ly higher.

How to host an RTMP server with IONOS

At IONOS, you’ll find three different options for server solutions:

• Dedicated server: The hardware is used ex­clu­sive­ly for your server, with per-minute billing.
• vServer: With a Virtual Private Server (VPS), the server en­vi­ron­ment is vir­tu­al­ized on dedicated hardware.
• Cloud Server: A cloud server offers complete flex­i­bil­i­ty – resources can quickly be added or removed from the con­fig­u­ra­tion.

Server solutions vary in terms of flex­i­bil­i­ty and pricing models. Cloud servers and dedicated servers are billed by the minute. Once you release the resources—by deleting the server—you no longer incur any charges. With a vServer, on the other hand, you should plan for a fixed monthly budget. A cloud server also provides a high degree of flex­i­bil­i­ty. With just a few clicks, you can scale resources such as storage space, RAM, or CPU cores for your RTMP server up or down as needed.

How to set up your own RTMP server step by step

In this tutorial, you’ll learn how to set up your own RTMP server with ease. The example uses an IONOS cloud server running Windows. If you’re using a Linux dis­tri­b­u­tion as the server operating system, you’ll need to adjust some of the steps ac­cord­ing­ly.

Step 1: Establish a con­nec­tion to the server

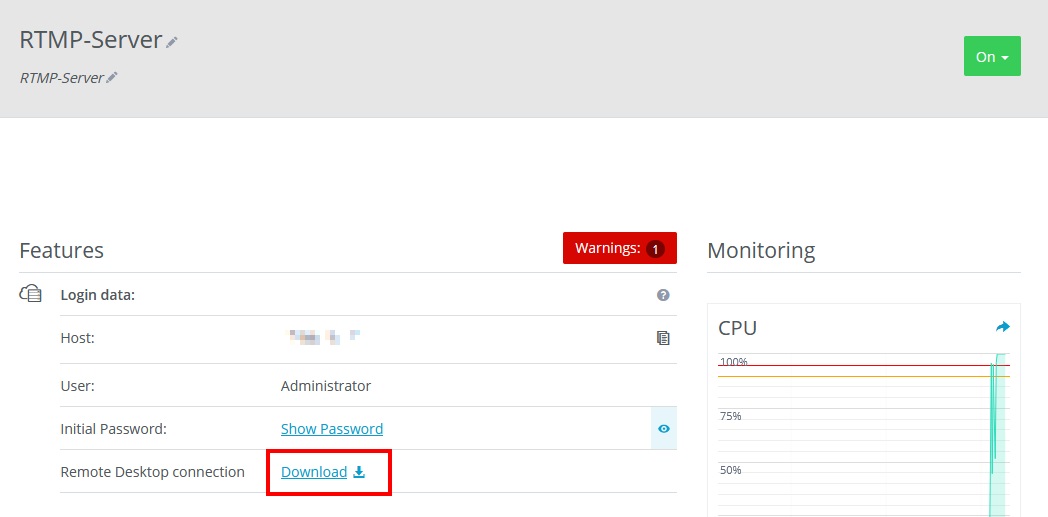

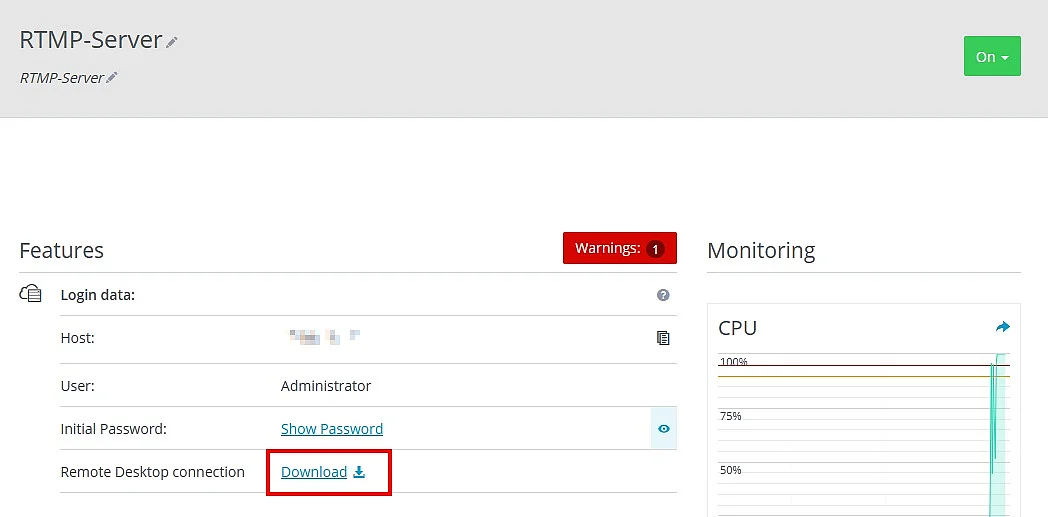

First, you need to connect to your server. To do this, log in to your IONOS user account and go to the “Server & Cloud” section. After selecting the ap­pro­pri­ate contract, you’ll be taken to the Cloud Panel. There, under the access data, you’ll find the “Remote Desktop con­nec­tion” link. When you click the link, your browser downloads a file that au­to­mat­i­cal­ly loads the correct settings for the Windows “Remote Desktop con­nec­tion” tool. You then just need to enter the password (also shown in the Cloud Panel) and establish the con­nec­tion. This takes you to your server’s desktop.

Close

If you’re not using a Windows PC, you can still connect remotely. Simply install ap­pro­pri­ate remote desktop software and use the cre­den­tials provided in the Cloud Panel to access the server.

Step 2: Install NGINX with the RTMP module

For the RTMP server, we use NGINX. The software is actually a web server, but with the help of an ad­di­tion­al module it also enables streaming via RTMP.

Instead, download a pre­com­piled version of the software that already includes the module. One example is the build variant nginx-rtmp-win32, which is available as a Windows binary on GitHub. These versions have the RTMP module compiled in, saving you the effort of manual com­pi­la­tion. You can then start NGINX from the command prompt. Open the command line, navigate to the extracted folder, and launch the web server with a single command:

start NGINX

No new window will open; the server runs in the back­ground. To test whether the NGINX software is working, you can open the server’s IP address in your browser. You should now see a notice about NGINX.

Step 3: Configure RTMP

To ensure your server is ready for RTMP, you now need to adjust the con­fig­u­ra­tion file. In the NGINX folder, look for the file named “nginx.conf.” You can open it with a text editor. At the end of the file, add the following code:

rtmp {
    server {
        listen 1935;
        chunk_size 4096;
        application live {
            live on;
            record off;
            # Enable HLS
            hls on;
            hls_path C:/nginx/hls;
            hls_fragment 3s;
            hls_playlist_length 30s;
        }
    }
}
http {
    server {
        listen 8080;
        location /hls {
            types {
                application/vnd.apple.mpegurl m3u8;
                video/mp2t ts;
            }
            root C:/nginx;
            add_header Cache-Control no-cache;
            add_header Access-Control-Allow-Origin *;
        }
    }
}

This con­fig­u­ra­tion ensures that your RTMP server accepts incoming streams on port 1935 via RTMP. Within the live ap­pli­ca­tion, the stream is processed and—if the HLS feature is enabled—also converted into smaller video segments along with a cor­re­spond­ing playlist file.

The http block then delivers these HLS files over port 8080, allowing them to be played in a browser or com­pat­i­ble media players. While RTMP is re­spon­si­ble for ingesting the stream, HLS manages the actual delivery to viewers.

To apply the updated con­fig­u­ra­tion, return to the command prompt and restart NGINX:

NGINX -s stop
start NGINX

application live {
	live on;
allow publish 192.168.1.0/24;
deny publish all;
}

Step 4: Open the port

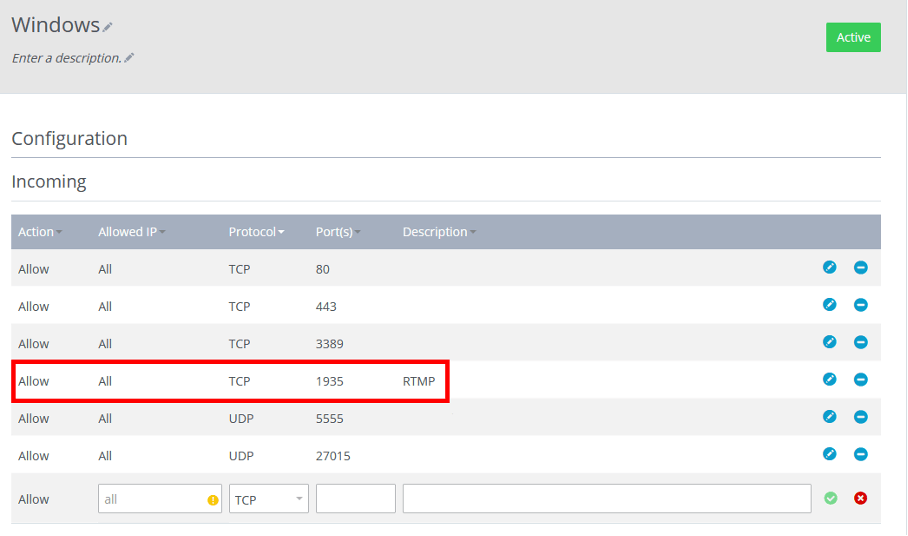

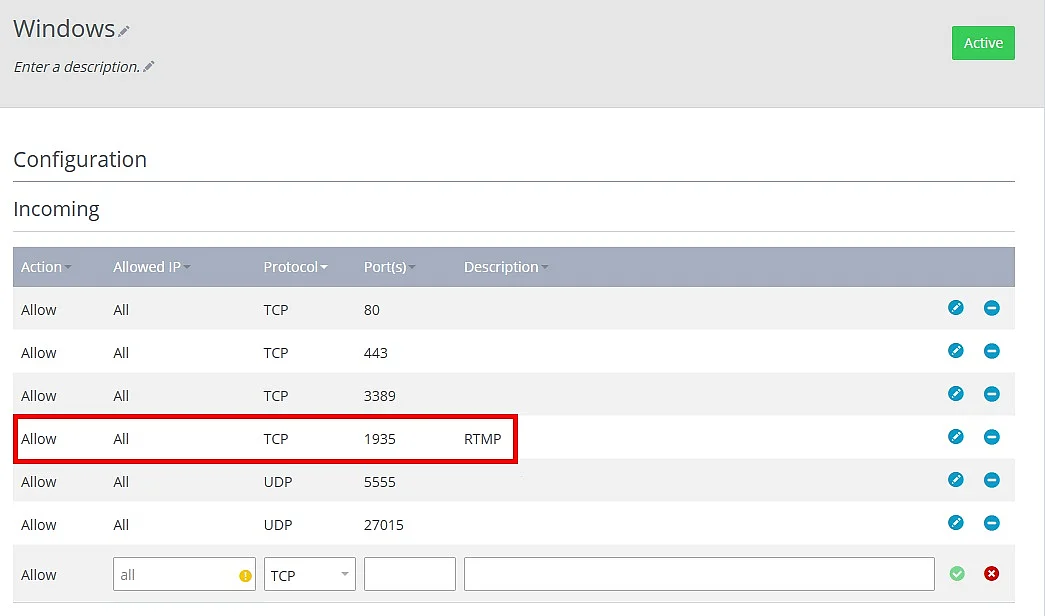

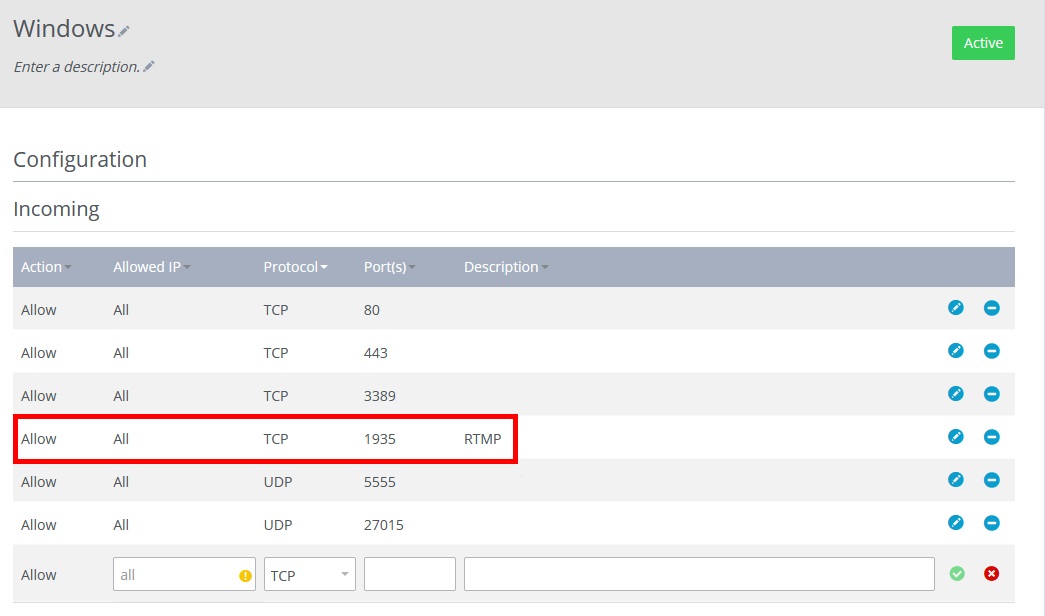

To allow other users to access your stream, you need to open the ap­pro­pri­ate TCP port in the server firewall. As an IONOS customer, log in to your account and open the Cloud Panel. In the Network section, you’ll find the firewall settings, where you need to open TCP port 1935.

Close

If you’re using HLS, you also need to create a cor­re­spond­ing rule for port 8080. Besides the firewall in the Cloud Panel, you must also configure the Windows Server firewall. Open Microsoft Defender Firewall with Advanced Security and create a new inbound rule for TCP port 1935 (RTMP) and, if required, port 8080 (HLS).

Al­ter­na­tive­ly, you can add the rule using Pow­er­Shell with a simple command:

New-NetFirewallRule -DisplayName "RTMP Server" -Direction Inbound -Protocol TCP -LocalPort 1935 -Action Allow

Step 5: Start the stream

You’ve now completed all the settings and can start sending streams. To do this, you still need suitable software. One very popular option is OBS. In the streaming software, you then need to enter your RTMP server ac­cord­ing­ly:

rtmp://<IP address>/live/stream

Enter the correct IP address of your server. You can also find this in­for­ma­tion in the Cloud Panel. Using this URL, the live stream is first sent to the RTMP server, while actual playback for viewers takes place through a separate delivery protocol such as HLS.
